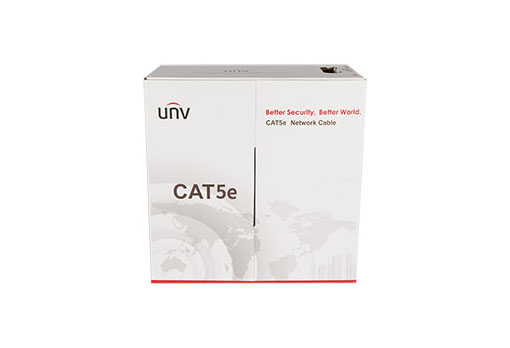

Name: CAB-LC2100B-IN UTP кабель 5E
SKU: CAB-LC2100B-IN
Price: 51800 KZT
Availability: InStock

Бренд	Uniview

<table style="height: 1008px; width: 100%;" width="100%">
<tbody>
<tr style="height: 18px;">
<td class="thead" style="height: 18px;" colspan="7">Content of Data Sheet</td>
</tr>
<tr style="height: 36px;">
<td style="height: 36px;" width="30%">Product model</td>
<td style="height: 36px;" colspan="6" width="70%">CAB-LC2100B-IN</td>
</tr>
<tr style="height: 36px;">
<td style="height: 36px;">Product specification</td>
<td style="height: 36px;" colspan="5">HSYV-5e 4×2×0.50</td>
<td style="height: 324px;" rowspan="11"><img src="https://www.uniview.com/res/201910/29/20191029_1736879_image007_790312_140445_0.jpg" height="311"></td>
</tr>
<tr style="height: 36px;">
<td style="height: 36px;">Test Standard</td>
<td style="height: 36px;" colspan="5">YD/T1019-2013</td>
</tr>
<tr style="height: 18px;">
<td style="height: 108px;" rowspan="4">Conductor</td>
<td style="height: 18px;" colspan="3">Material</td>
<td style="height: 18px;" colspan="2">OFC(Oxygen free copper)</td>
</tr>
<tr style="height: 18px;">
<td style="height: 18px;" colspan="3">AWG</td>
<td style="height: 18px;" colspan="2">24</td>
</tr>
<tr style="height: 36px;">
<td style="height: 36px;" colspan="3">Nom.O.D.(mm)</td>
<td style="height: 36px;" colspan="2">0.5±0.005 mm</td>
</tr>
<tr style="height: 36px;">
<td style="height: 36px;" colspan="3">DC resistance</td>
<td style="height: 36px;" colspan="2">≤95 Ω/km</td>
</tr>
<tr style="height: 18px;">
<td style="height: 144px;" rowspan="5">Insulation</td>
<td style="height: 18px;" colspan="3">Material</td>
<td style="height: 18px;" colspan="2">HDPE</td>
</tr>
<tr style="height: 18px;">
<td style="height: 18px;" colspan="3">Thickness</td>
<td style="height: 18px;" colspan="2">0.2±0.02 mm </td>
</tr>
<tr style="height: 18px;">
<td style="height: 18px;" colspan="3">Diameter</td>
<td style="height: 18px;" colspan="2">0.9±0.05 mm </td>
</tr>
<tr style="height: 36px;">
<td style="height: 90px;" rowspan="2">Color</td>
<td style="height: 36px;" colspan="3">Blue/White- Blue</td>
<td style="height: 36px;">Green/White-Green</td>
</tr>
<tr style="height: 54px;">
<td style="height: 54px;" colspan="3">Orange<br>/White-Orange</td>
<td style="height: 54px;">Brown/White-Brown</td>
</tr>
<tr style="height: 36px;">
<td style="height: 72px;" rowspan="2">Pitch</td>
<td style="height: 36px;" colspan="2">Offset pitch</td>
<td style="height: 36px;" colspan="3">≤25 mm</td>
<td style="height: 594px;" rowspan="17">
<table>
<tbody>
<tr>
<td class="thead" colspan="5">Electrical Characteristics:</td>
</tr>
<tr>
<td class="thead">Frequency</td>
<td class="thead">Characteristic impedance</td>
<td class="thead">RL</td>
<td class="thead">ATT</td>
<td class="thead">NEXT</td>
</tr>
<tr>
<td>MHz</td>
<td>ohm</td>
<td>≥dB/100m</td>
<td>≤dB/100m</td>
<td>≥dB/100m</td>
</tr>
<tr>
<td>1</td>
<td>100±15</td>
<td>20.0</td>
<td>2.0</td>
<td>65.3</td>
</tr>
<tr>
<td>4</td>
<td>100±15</td>
<td>23.0</td>
<td>4.1</td>
<td>56.3</td>
</tr>
<tr>
<td>10</td>
<td>100±15</td>
<td>25.0</td>
<td>6.5</td>
<td>50.3</td>
</tr>
<tr>
<td>16</td>
<td>100±15</td>
<td>25.0</td>
<td>8.2</td>
<td>47.3</td>
</tr>
<tr>
<td>20</td>
<td>100±15</td>
<td>25.0</td>
<td>9.3</td>
<td>45.8</td>
</tr>
<tr>
<td>31.25</td>
<td>100±15</td>
<td>23.6</td>
<td>11.6</td>
<td>42.9</td>
</tr>
<tr>
<td>62.5</td>
<td>100±15</td>
<td>21.5</td>
<td>17.0</td>
<td>38.4</td>
</tr>
<tr>
<td>100</td>
<td>100±15</td>
<td>20.1</td>
<td>22.0</td>
<td>35.3</td>
</tr>
</tbody>
</table>
<br>
<table>
<tbody>
<tr>
<td class="thead">Frequency</td>
<td class="thead">FEXT</td>
<td class="thead">PS NEXT</td>
<td class="thead">PS FEXT</td>
<td class="thead">Phase delay</td>
</tr>
<tr>
<td>MHz</td>
<td>≥dB/100m</td>
<td>≥dB/100m</td>
<td>≥dB/100m</td>
<td>≤ns/100m</td>
</tr>
<tr>
<td>1</td>
<td>63.8</td>
<td>62.3</td>
<td>60.8</td>
<td>570.0</td>
</tr>
<tr>
<td>4</td>
<td>51.7</td>
<td>53.3</td>
<td>48.7</td>
<td>552.0</td>
</tr>
<tr>
<td>10</td>
<td>43.8</td>
<td>47.3</td>
<td>40.8</td>
<td>545.4</td>
</tr>
<tr>
<td>16</td>
<td>39.7</td>
<td>44.2</td>
<td>36.7</td>
<td>543.0</td>
</tr>
<tr>
<td>20</td>
<td>37.7</td>
<td>42.8</td>
<td>34.7</td>
<td>542.0</td>
</tr>
<tr>
<td>31.25</td>
<td>33.9</td>
<td>39.9</td>
<td>30.9</td>
<td>540.4</td>
</tr>
<tr>
<td>62.5</td>
<td>27.8</td>
<td>35.4</td>
<td>24.8</td>
<td>538.6</td>
</tr>
<tr>
<td>100</td>
<td>23.8</td>
<td>32.3</td>
<td>20.8</td>
<td>537.4</td>
</tr>
</tbody>
</table>
</td>
</tr>
<tr style="height: 36px;">
<td style="height: 36px;" colspan="2">Cable pitch</td>
<td style="height: 36px;" colspan="3">≤140 mm</td>
</tr>
<tr style="height: 36px;">
<td style="height: 144px;" rowspan="5">Sheath</td>
<td style="height: 36px;" colspan="2">Material</td>
<td style="height: 36px;" colspan="3">PVC(complies RoHS/REACH)</td>
</tr>
<tr style="height: 36px;">
<td style="height: 36px;" colspan="2">External O.D.</td>
<td style="height: 36px;" colspan="3">5.1±0.3 mm</td>
</tr>
<tr style="height: 18px;">
<td style="height: 18px;" colspan="2">Color</td>
<td style="height: 18px;" colspan="3">Gray(RAL7046)</td>
</tr>
<tr style="height: 36px;">
<td style="height: 36px;" colspan="2">Tensile strength</td>
<td style="height: 36px;" colspan="3">>13.5 Mpa</td>
</tr>
<tr style="height: 18px;">
<td style="height: 18px;" colspan="2">Thickness</td>
<td style="height: 18px;" colspan="3">0.55±0.05 mm</td>
</tr>
<tr style="height: 36px;">
<td style="height: 144px;" rowspan="4">Surface Printing</td>
<td style="height: 36px;" colspan="2">Letter height</td>
<td style="height: 36px;" colspan="3">3.0±0.3 mm</td>
</tr>
<tr style="height: 18px;">
<td style="height: 18px;" colspan="2">Color</td>
<td style="height: 18px;" colspan="3">Black</td>
</tr>
<tr style="height: 54px;">
<td style="height: 54px;" colspan="2">Print error & Space</td>
<td style="height: 54px;" colspan="3">1±0.005 m</td>
</tr>
<tr style="height: 36px;">
<td style="height: 36px;" colspan="2">Case number</td>
<td style="height: 36px;" colspan="3">Yes</td>
</tr>
<tr style="height: 18px;">
<td style="height: 180px;" rowspan="4">Packing</td>
<td style="height: 18px;" colspan="2">Packing</td>
<td style="height: 18px;" colspan="3">Carton</td>
</tr>
<tr style="height: 54px;">
<td style="height: 54px;" colspan="2">Once packing dimension</td>
<td style="height: 54px;" colspan="3">350mm*216mm*350mm</td>
</tr>
<tr style="height: 54px;">
<td style="height: 54px;" colspan="2">Twice packing dimension</td>
<td style="height: 54px;" colspan="3">370mm*460mm*370mm</td>
</tr>
<tr style="height: 54px;">
<td style="height: 54px;" colspan="2">Twice packing quantity</td>
<td style="height: 54px;" colspan="3">2 cases</td>
</tr>
<tr style="height: 36px;">
<td style="height: 36px;">Packing length</td>
<td style="height: 36px;" colspan="5">305±1 m</td>
</tr>
<tr style="height: 18px;">
<td style="height: 18px;">Rip-cord</td>
<td style="height: 18px;" colspan="5">Yes</td>
</tr>
<tr style="height: 36px;">
<td style="height: 36px;">Ambient temperature</td>
<td style="height: 36px;" colspan="6">-20℃～60℃</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Uniview
